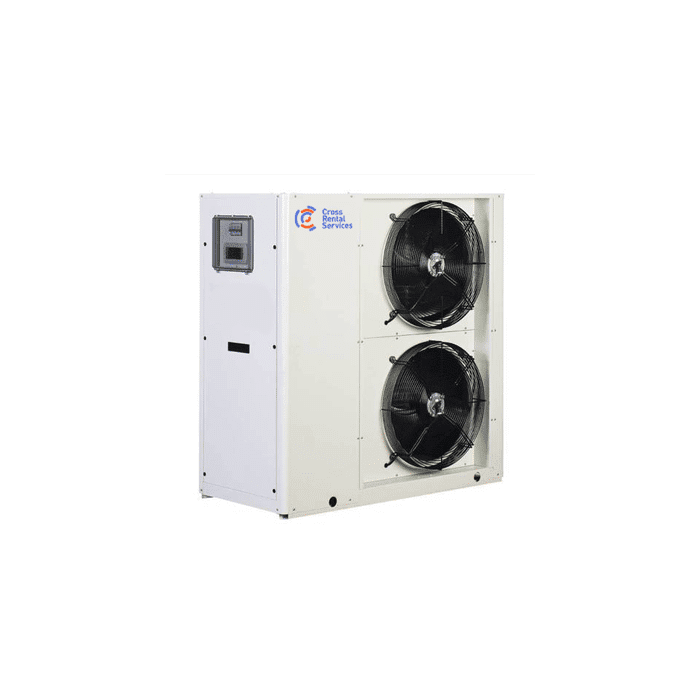

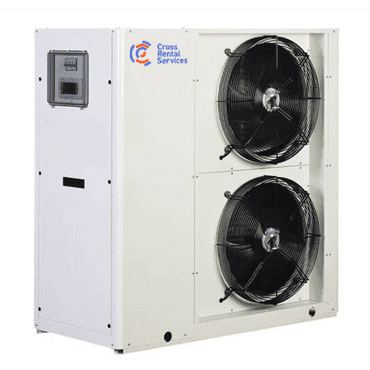

14kW Chiller
The 14kW Chiller unit is a small and compact chiller perfect for applications which require a minimal level of cooling duty.
See more: Chillers
- Automatic Fan Circuit Breaker
- Steel Framed
- Water Outlet Temperature Regulator
- Internal Fan Circuit Breaker
Specification
Performance Data
| Duty: | 14.4 kW |
| Inlet Temperature: | 12 °C |
| Outlet Temperature: | 7 °C |
| Ambient: | 35 °C |
| Compressor Power: | 4.4 kW |
| EER: | 3.09 |
| Compressors: | 1 |
| Compressor Type : | '- |
| Capacity Steps : | '- |
| Control : | '- |
| Buffer Tank Capacity : | 30 Ltrs |
| Refrigerant - Type : | R410a |
| Refrigerant - No. Of Circuits : | 1 |
| Evaporator - Type : | '- |
| Evaporator - No. Of Circuits : | 1 |
| Evaporator - Design Flow: | '- |
| Evaporator - Pressure Drop: | 36 kPa |
| Evaporator - Max System Pressure : | '- |
| Condenser - Fan Quantity : | 2 |
| Condenser - Fan Type : | '- |
| Water Connection: | 1¼ Camlock |
| Water Pump : | '- |
Electrical
| Power Supply : | 415vAC 3Ø, N + Eth |
| Running amps : | |
| Power Consumption : | 4.7 kW |
| Full Load Amps: | 18 Amps |
| Start Amps : | 67 Amps |
| Total Current LPA: | |
| Unit Connection : | 5 Pin 32A |
Physical
| Noise Level : | 69 dBA @ 10 Metres |
| Dry Weight: | 209 kg |
| Dimensions mm (WxLxH) : | 564 x 1248 x 1224 |
