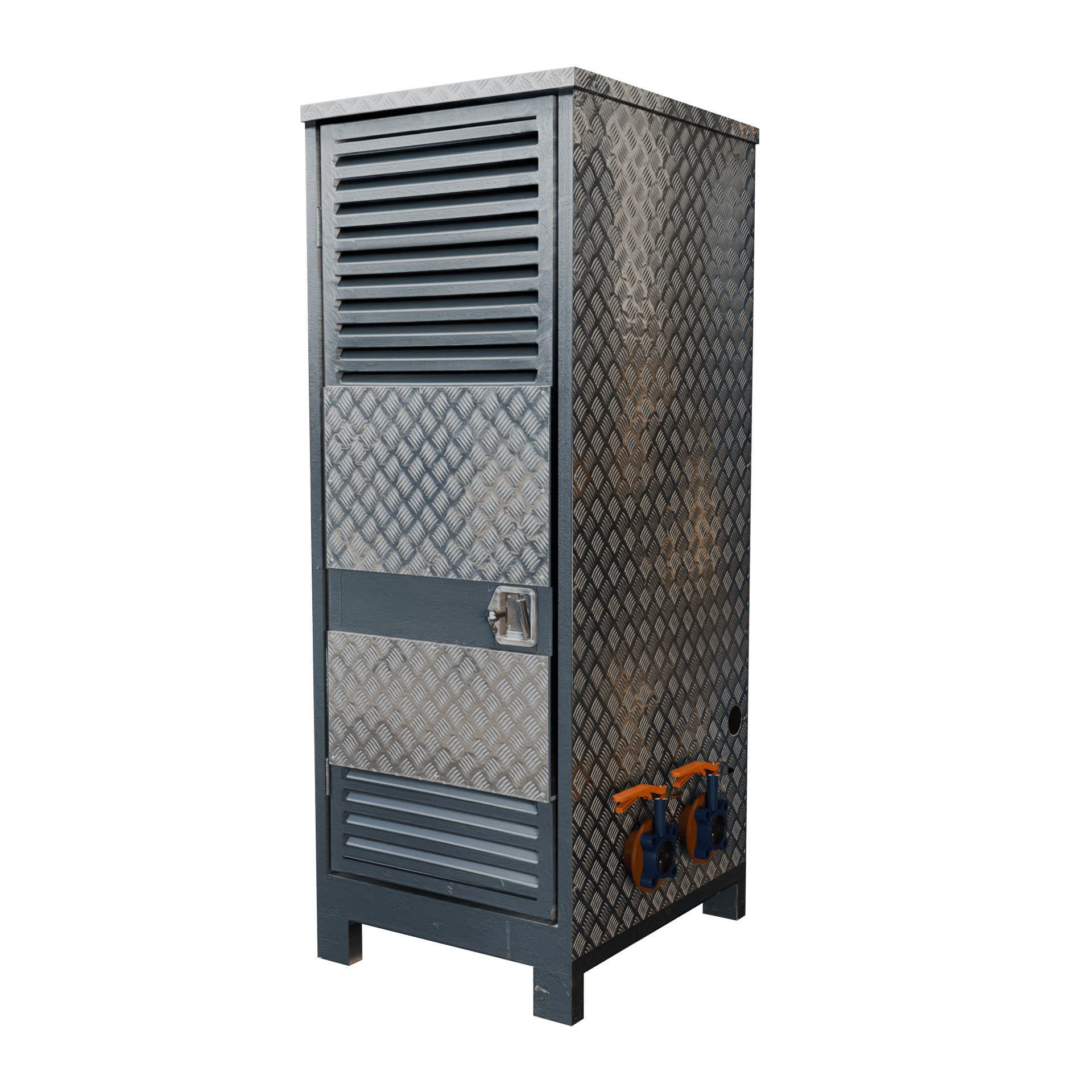

150 kW Condensing Boiler
A small footprint 150kW condensing boiler, adept at supplying heating and domestic hot water. This frame-mounted package is tailored for sites with restricted space, offering industry-leading efficiency.
See more: Boilers
- Low NOx condensing boiler
- Highly fuel-efficient operation
- Bespoke built at the Cross Rental Services UK facility
Specification
Performance Data
| Output (kW) : | 150 kW |
| Temporture Range: | 30-87 °C |
| Variable Temperature Control: | Yes |
| Max Working Pressure (Safety Valve) : | 6 Bar |
| BMS Outputs: | Optional |
| Time Clock: | Yes |
| Frost Protection: | No |
| Flow: | m³/hr |
| Expansion Vessel: | Optional |
Fuel
| Fuel Type: | Natural Gas |
| Fuel Connection (Gas): | 2" |
| Fuel Consumption (Gas): | <13.49 m³/hr |
| Temp. Gas Pipe Size : | As Needed |
| Gas Trac Maximum Length : | 100 mtrs |
System Connections
| Flexible Hose Connections: | Flow/Return |
| Flexible Hose Connection Type: | PN16 Flange |
| Water Connections: | 2" |
| DHW System: | External |
Electrical
| Power Supply: | 240V 1Ø 50Hz |
| Plug Type: | 16A 3 Pin BS4343 |
| Running Current: |
Physical
| Noise Level: | 46dBA @ 10mtr dBA |
| Handling Options: | Pallet Truck/Forklift/ Hiab With Straps |
| Dry Weight: | 348 kg |
| Dimensions (Length): | 810 mm |
| Dimensions (Width): | 710 mm |
| Dimensions (Height): | 1,900 mm |
| Height of Flue Above Ground: | 760 mm |
