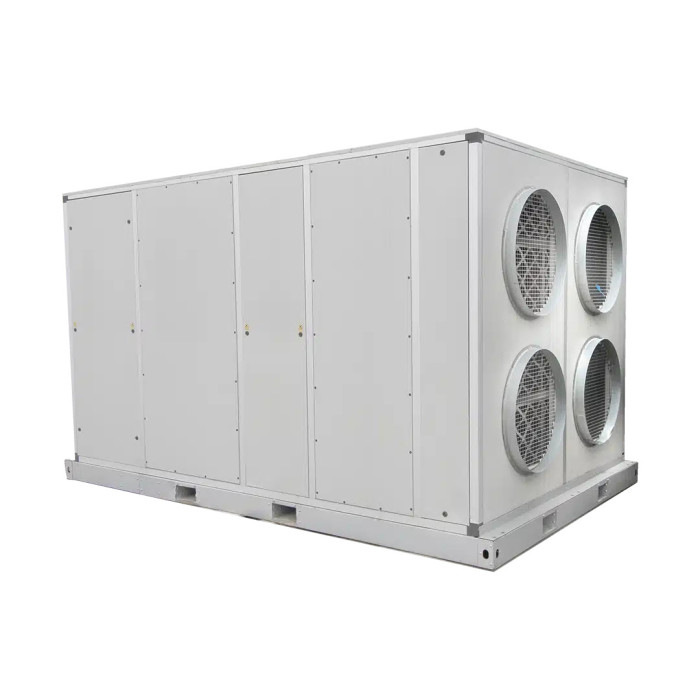

250kW Air Handling Unit (AHU)
See more: Boilers
- 100kW
- Fresh Air Louvre or Return Air (600mm)
Specification
Performance Data
| Cooling Output: | 250 kW |
| Heat Output: | 729 kW |
| Air Volume: | 30.060 m³/hr |
Electrical Data
| Power Supply: | 415V / 3 / 50 ( V / Ø / Hz) |
| Plug Type: | 63A 5 Pin BS4343 |
| Max Current: | 35 A |
Connections
| Outlet Diameter: | 720 mm (x4) |
| Max Duct Length: | 80 m |
Physical Data
| Sound Level: | 87 dBA @1m |
| Weight: | 2325 kg |
| Dimensions (Length) mm: | 2340 mm |
| Dimensions (Width) mm: | 3780 mm |
| Dimensions (Height) mm : | 2250 mm |
