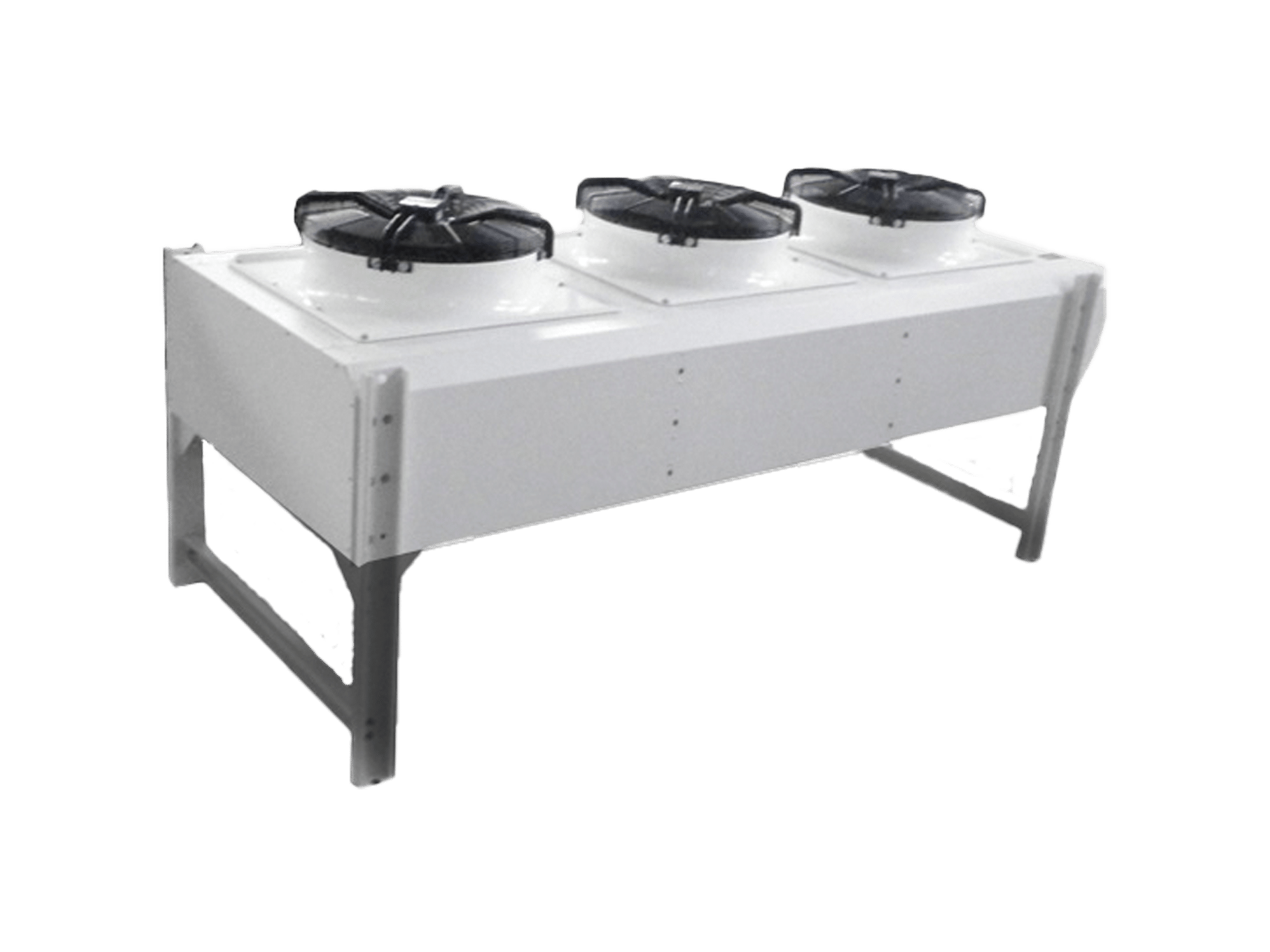

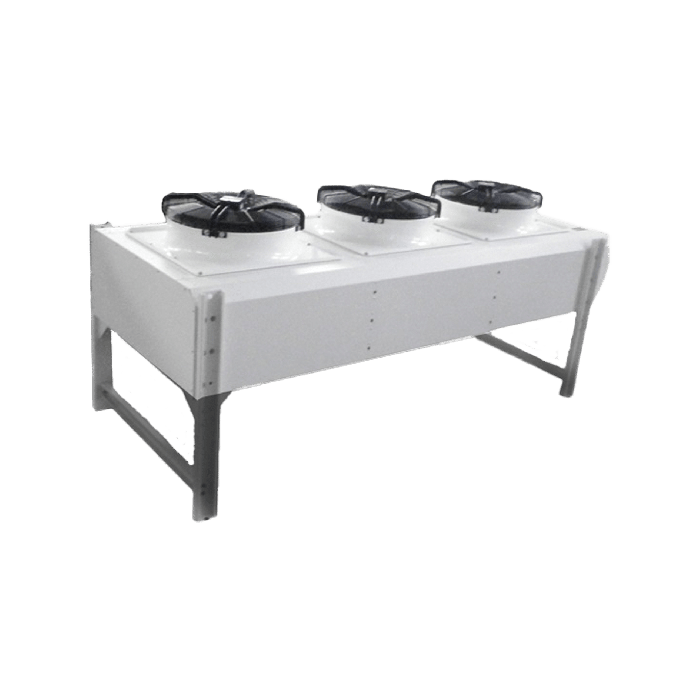

250kW Dry Air Cooler
Dry air coolers are cooling devices that use air to dissipate heat and regulate temperature.
See more: Dry Air Coolers
Specification
Performance Data
| Cooling Capacity : | 250kW |
| Water Inlet Temperature : | 40°C |
| Water Outlet Temperature : | 35°C |
| Air On Temperature : | 25°C |
| Water Pressure Drop : | 84 kPa |
| Max Working Pressure : | 10 Bar |
| Airflow: | 77.544 m³/hr |
| Water Flow Rate : | 12.08 l/s |
| Number of Fans : | 3 |
Electrical
| Power Supply : | 415V 3Ø 50Hz |
| Plug Type : | 32A 5 Pin BS4343 |
| Full Load Amps : | 22.2 A |
Physical
| Sound Level : | 61.8 dBA @ 10 Metres |
| Dry Weight : | 875 kg |
| Dimensions mm (WxLxH): | 1606 x 4832 x 1400 |
