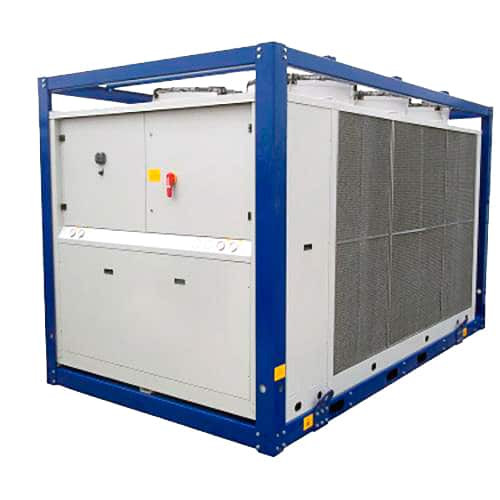

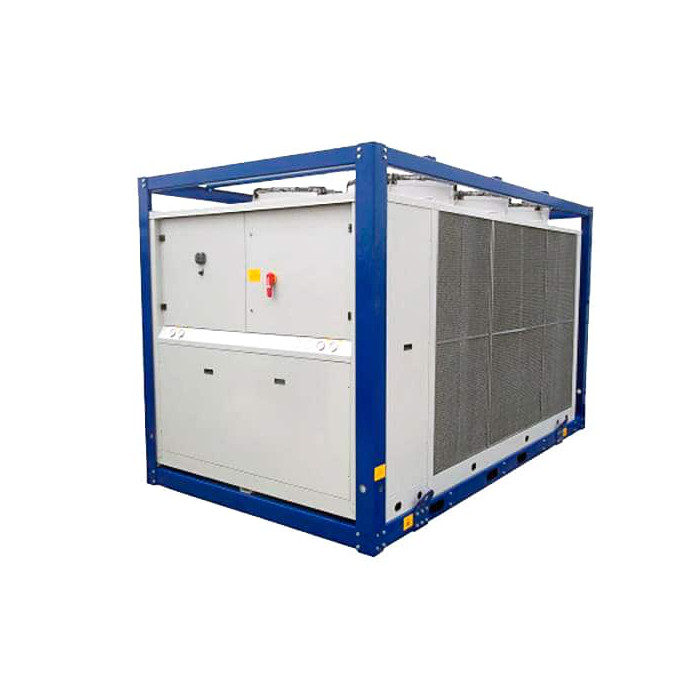

300kW Chiller
This 300kW Chiller can be used for the most complete range of cooling applications; from air conditioning to process cooling and even ice rink creation. It can also be used as part of a standalone air conditioning system suitable for temporary events or permanent installation when combined with air handling units.
See more: Chillers
Specification
Performance Data
| Chiller Model : | CFA295 |
| Duty: | 300kW |
| Inlet Temperature: | 12 °C |
| Outlet Temperature: | 7 °C |
| Ambient: | 30 °C |
| Compressor Power: | 92.9 kW |
| EER: | 2.7 |
| Compressors: | 4 |
| Compressor Type: | Scroll |
| Capacity Steps: | 4 |
| Control: | Automatic Programme |
| Buffer Tank Capacity : | 500 Ltrs |
| Refrigerant - Type : | R410a |
| Refrigerant - No. Of Circuits : | 2 |
| Evaporator - Type : | Plate |
| Evaporator - No. Of Circuits : | 2 |
| Evaporator - Design Flow: | 49.6m3/hour |
| Evaporator - Pressure Drop: | 70 kPa |
| Evaporator - Max System Pressure: | 380 kPa |
| Condenser- Fan Quality: | 6 |
| Condenser - Fan Type: | Axial |
| Water Connection: | 4” Bauer Male & Female |
| Water Pump: | Yes - Lowara FHE40/200/55P |
Electrical
| Power Supply : | 415vAC 3Ø, N + Eth |
| Running amps : | |
| Power Consumption : | 131.4 kW/h |
| Full Load Amps: | 225.2 Amps |
| Start Amps : | 479 Amps |
| Total Current LPA: | |
| Unit Connection: | Hard Wired |
Physical
| Noise Level : | 60 dBA @ 10 Metres |
| Dry Weight: | 2100 kg |
| Dimensions mm (WxLxH) : | 2240 x 4000 x 2380 |
