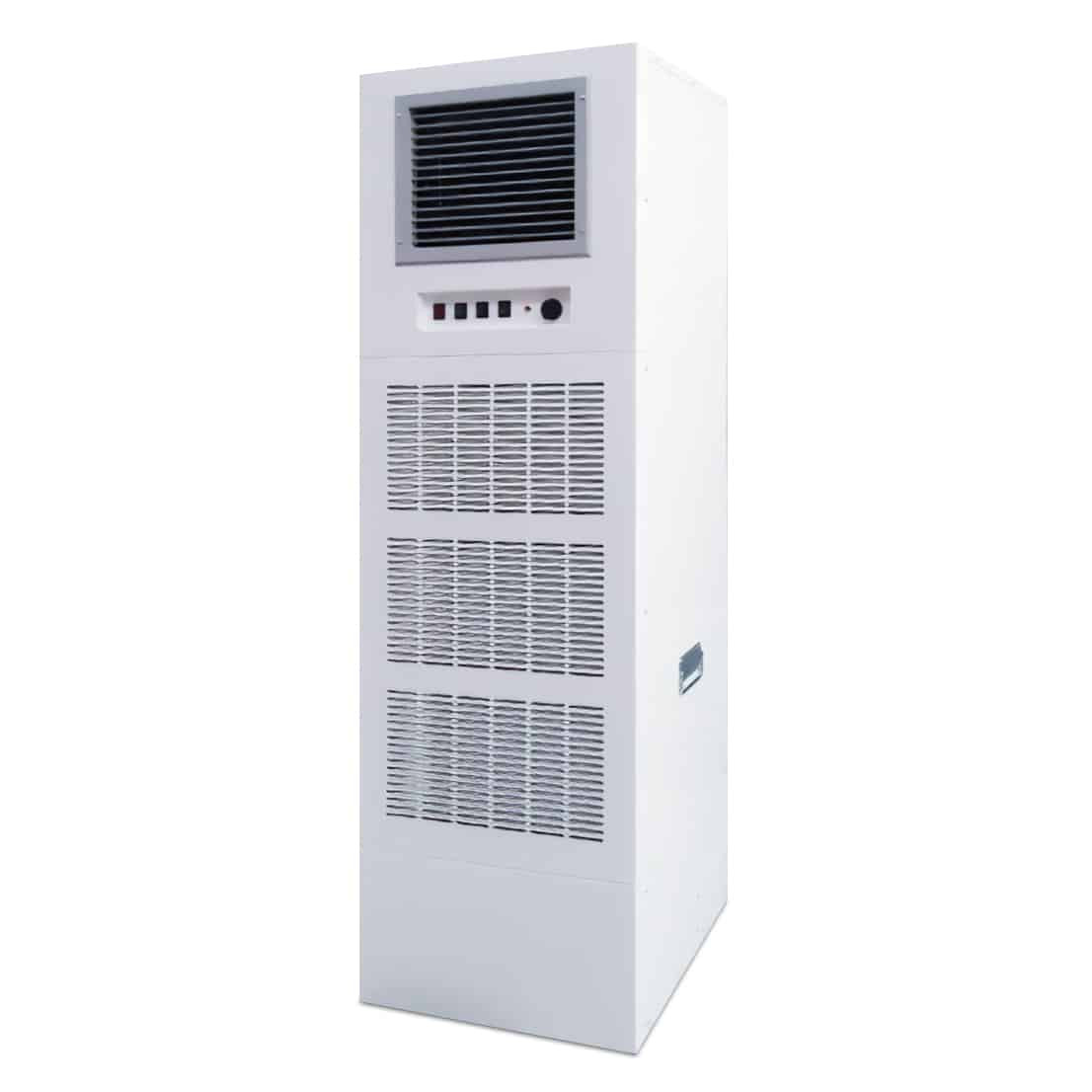

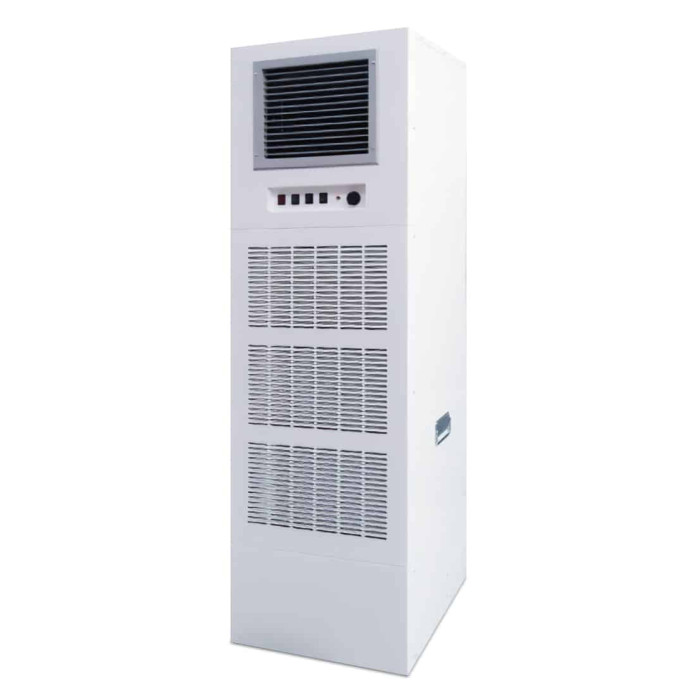

30kW Fan Coil Unit (FCU)
Specially designed for use in places where space is a premium the AHU30 can deliver 30kW of cooling from a footprint of just 58.5cm x 42.5cm and can be used with any existing chiller or heat pump.
Thanks to its size and weight compared to traditional 30kW units the AHU30 can be installed with just a single operative and a sack truck instead of forklifts or heavy installation gear. Multiple fan speeds and thermostatic control allow performance to be tailored to suit any application.
See more: Boilers
Specification
Performance Data
| Cooling Output: | 30 kW |
| Heat Output: | 60 kW |
| Air Volume: | 9.38 m³/hr |
Electrical Data
| Power Supply: | 230V / 1 / 50 ( V / Ø / Hz) |
| Plug Type: | 13A 3 Pin BS1363 |
| Max Current: | 4.6 A |
Connections
| Outlet Diameter: | No Ducting Required |
Physical Data
| Sound Level: | 65 (d)BA @1m |
| Weight: | 90 kg |
| Dimensions (Length) mm : | 585 mm |
| Dimensions (Width) mm: | 425 mm |
| Dimensions (Height): | 1840 mm |
