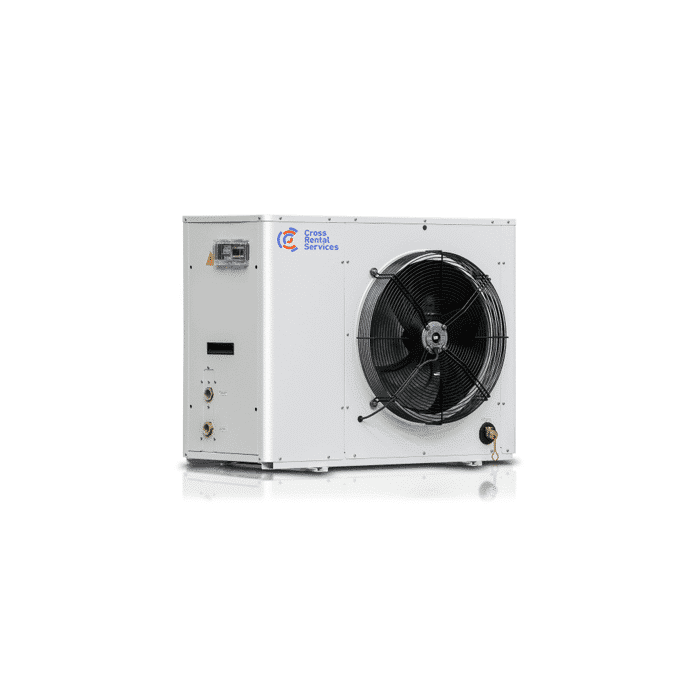

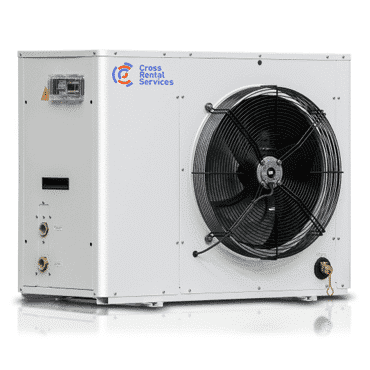

5kW Heat Pump Chiller
See more: Chillers
- 5kW Cooling Capacity
- 5.9kW Heating Capacity
- 230V – 1N – 50Hz power supply
- Refrigerant – R410A
- Mechanical Expansion Valve
- LP Pump & Expansion Vessel
- Onboard standard microprocessor controller
Specification
Performance Data
| Duty: | 5kW (cooling) 5.9kW (heating) |
| Inlet Temperature: | 12 °C |
| Outlet Temperature: | 7 °C |
| Ambient: | 35 °C |
| Compressor Power: | 1.7 kW |
| EER: | 2.95 |
| Compressors: | 1 |
| Compressor Type : | '- |
| Capacity Steps : | '- |
| Control : | '- |
| Buffer Tank Capacity : | 20 Ltrs |
| Refrigerant - Type : | R410a |
| Refrigerant - No. Of Circuits : | 1 |
| Evaporator - Type : | '- |
| Evaporator - No. Of Circuits : | 1 |
| Evaporator - Design Flow: | '- |
| Evaporator - Pressure Drop: | <5 kPa |
| Evaporator - Max System Pressure: | '- |
| Condenser - Fan Quantity : | 1 |
| Condenser - Max Air Volume: | 3700 m³/hr |
| Water Connection: | 1 1/4” Camlock |
| Water Pump : | '- |
| Maximum Flow Rate : |
Electrical
| Power Supply : | 230vAC 3Ø, N + Eth |
| Running amps : | |
| Power Consumption : | 1.7 kW |
| Full Load Amps: | 11 Amps |
| Start Amps : | 44 Amps |
| Total Current LPA: | |
| Unit Connection : | 3 Pin 16A BS4343 |
Physical
| Noise Level : | 66dB(A) @ 10 Metre |
| Dry Weight: | 105 kg |
| Dimensions mm (WxLxH) : | 492 x 989 x 758 |
