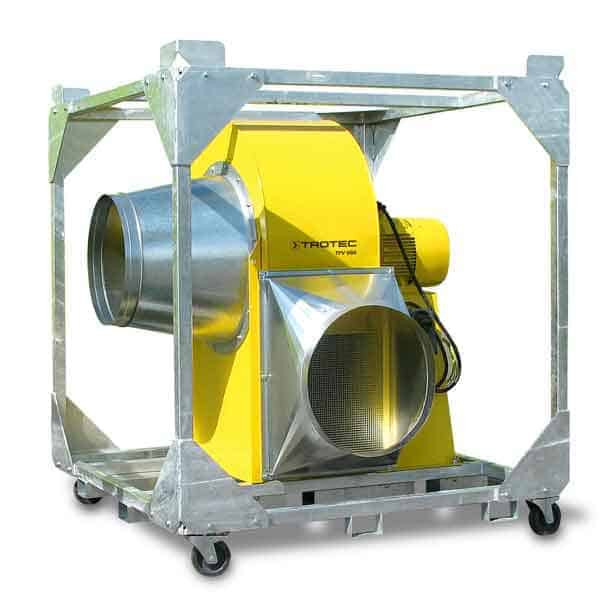

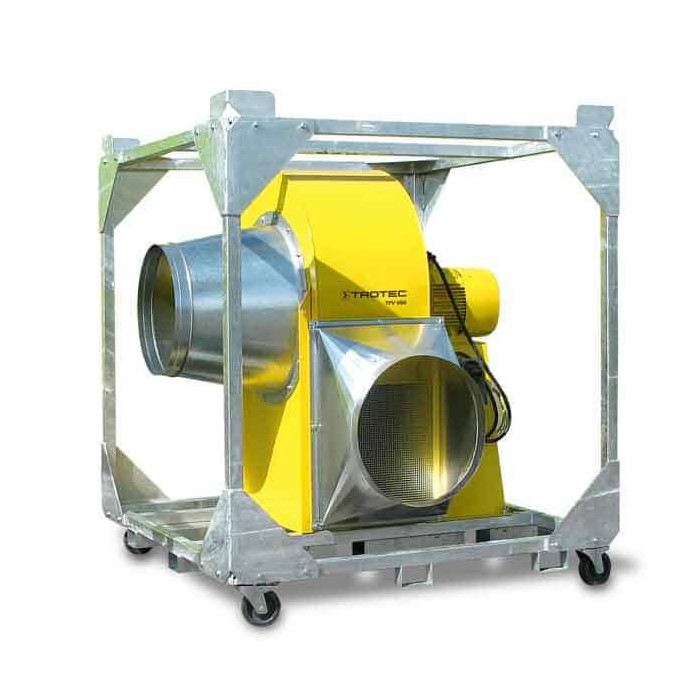

TFV 900 Heavy Duty Industrial Extraction Fan
The TFV 900, heavy-duty, industrial extraction fan has a maximum air pressure of 1,900 Pa, with a free discharge air volume of 33,600 m³/hour. This high-quality device is robust and can withstand the rigours of aggressive industrial environments. It is a high-pressure fan with high volume flow rates.
The TFV 900 is the optimal solution for all applications where air has to be transported over long distances.
Key benefits of the TFV 900:
- Extremely robust model with a high flow rate
- Splash-proof type A (IP55)
- Deployment also possible in very dusty rooms
- Fan motor situated away from the main airflow
- Can be connected to suction as well as distribution ducts
- Stable characteristic curves and constantly high pressure
- Comes in an EX rated model for Zones 1 & 2.
The TFV 900 is also available in the EX-rated Version.
See more: Dust Control
- Robust, high-quality unit with high transport capacity
- Splash-proof design (IP55)
- Can be used even in very dusty areas
- The fan motor is located outside the main air flow
- Can be connected to both intake and exhaust pipes
- Stable characteristic curve ranges and consistently high pressure
| Free discharge air volume | 33,600 m³/h |
| Air volume at air pressure | 25,000 m³/h |
| Air discharge speed | 34 m/s (122.4 km/h) |
| Fan stages | 1 |
| Air pressure max. | 1,900 Pa |
| Max. transport medium temperature | 80°C |
| Surrounding conditions | -20°C to 40°C |
| Input voltage | 400 V / 50 Hz (36 A) |
| Requisite protection | CEE 32 A |
| Power input | 18.5 kW |
| Intake duct | Accesories (ø 630 mm) |
| Outlet duct | Standard (ø 630 mm) |
| Sound level (distance 1.5 m) | 82 dB (A) |
| Housing | steel, powder-coated, 2K paint |
| Dimensions (with frame) | 1,950 x 1,900 x 2,200 mm |
